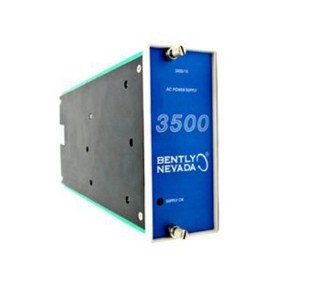

3500/15-04-04-00 133300-01 Bently Nevada Legacy Low Voltage DC Power Input Module
Product Details:
| Brand Name | Bently Nevada |
| Model | 3500/15-04-04-00 |
| Ordering information | 133300-01 |
| Catalog | 3500 |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $800 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:

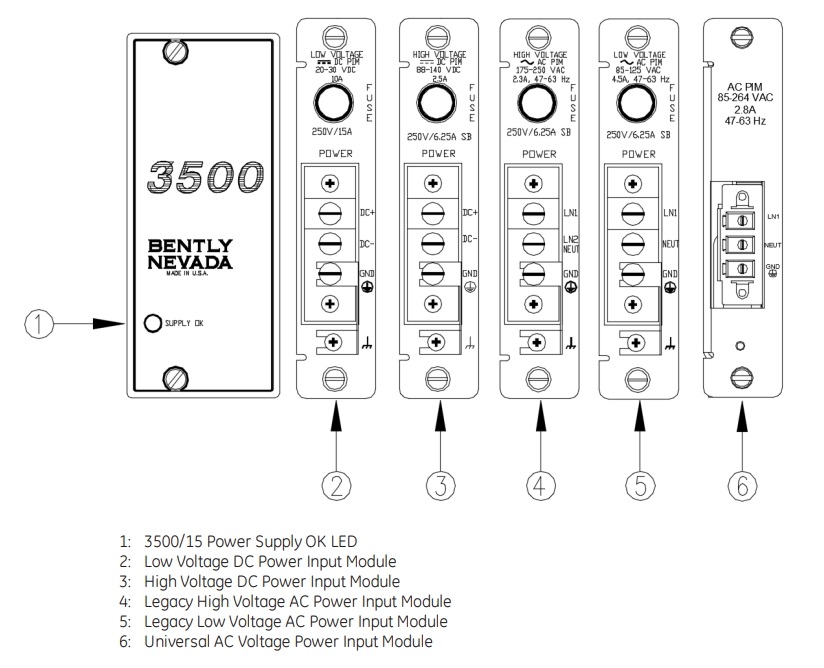

| Part Number | Description |
| 127610-01 | AC Power Supply Module |
| 125840-01 | High Voltage AC Power Input Module |
| 125840-02 | Low Voltage AC Power Input Module |
| 106M1079- 01 | Universal AC Power Supply Module |
| 106M1081- 01 | Universal AC Power Input Module |
| 133292-01 | Low Voltage DC Power Supply Module |
| 133300-01 | Low Voltage DC Power Input Module |
Description:
The 3500/15 AC and DC power supplies are low-profile modules and must be installed on the left side of the rack in designated slots. The 3500 rack can contain one or two power supplies providing any combination of AC and DC. Either supply can power the entire rack.
3500/15 AXX - BXX - CXX
A: Power Supply Type (Top Slot)
01 Low Voltage AC (85 to 132 Vac rms)
02 High Voltage AC (175 to 264 Vac rms)
03 High Voltage DC (88 to 140 Vdc)
04 Low Voltage DC (20 to 30 Vdc
05 Universal AC Voltage (85 to 264 Vac rms)
B: Power Supply Type (Bottom Slot)
00 No supply (Used when no supply is required)
01 Low Voltage AC (85 to 132 Vac rms)
02 High Voltage AC (175 to 264 Vac rms)
03 High Voltage AC (88 to 140 Vdc)
04 Low Voltage AC (20 to 30 Vdc)
05 Universal AC Voltage (85 to 264 Vac rms)
C: Agency Approval
00 None
01 CSA / NRTL / C (Class 1, Division 2)
02 ATEX / IECEx / CSA (Class 1, Zone 2)
Datasheet Link:Bently Nevada 3500 15.pdf
