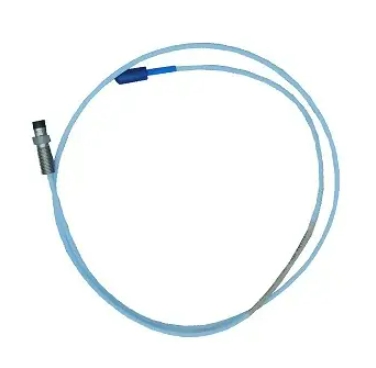

330101-00-54-10-02-00 3300XL Bently Nevada 8 mm Probe, 3/8-24 UNF Thread Without Armor
Product Details:
| Brand Name | Bently Nevada |
| Model | 3300XL |
| Ordering information | 330101-00-54-10-02-00 |
| Catalog | 3300XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Description |
| One-meter systems do not use an extension cable. |
| Proximitor sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request. |
| Consult Bently Nevada Applications Note, Considerations when using Eddy Current Proximity Probes for Overspeed Protection Applications, when considering this transducer system for tachometer or overspeed measurements. |
| 3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components. |
| Mixing XL and non-XL 3300-series 5 mm and 8 mm system components limits system performance to the specifications for the nonXL 3300 5 mm and 8 mm Transducer System. |
| The 3300-series 5 mm probe (refer to Document 141605) uses smaller physical packaging, but does not reduce the side view clearances or tip-to-tip spacing requirements as compared to an 8mm probe. |
| 8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. |
| Each 3300 XL extension cable includes silicone tape that you can use instead of connector protectors. |
Description:

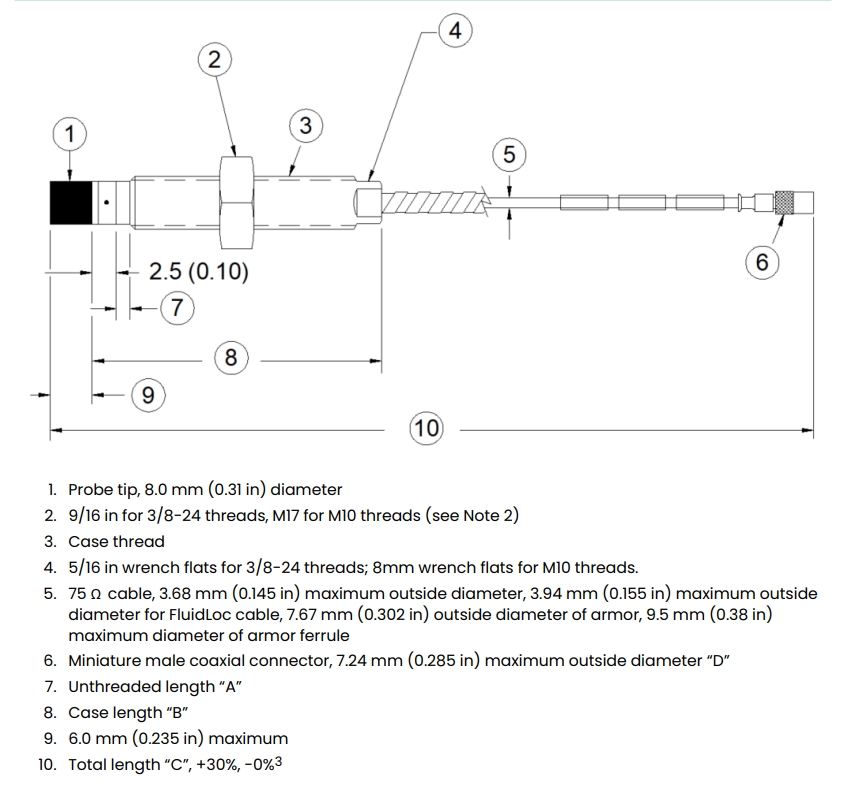

Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 0.1 in. Length configurations: Maximum unthreaded length: 8.8 in. Minimum unthreaded length: 0.0 in. Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in. Standard thread configurations: Maximum case length: 9.6 in. Minimum case length: 0.8 in. Example: 2 4 = 2.4 in.
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
30 3.0 meters (9.8 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
01 Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12 Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
Datasheet Link:Bently Nevada 3300 XL.pdf
