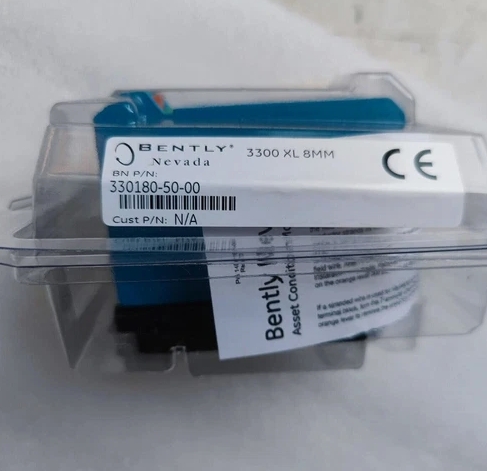

330180-50-00 Bently Nevada Proximitor Sensor 3300 XL 5/8 MM Preprocessor Module
Product Details:
| Brand Name | Bently Nevada |
| Model | 330180-50-00 |
| Catalog | 3300 XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $500 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Deviation from best fit straight line (DSL) |
| Standard 5 or 1 meter System | Less than ±0.025 mm (±1 mil) with components at 0 °C to +45 °C (+32 °F to +113 °F). |
| Standard 9 meter System | Less than ±0.038 mm (±1.5 mil) with components at 0 °C to +45 °C (+32 °F to +113 °F). |
| Extended Temperature Range 5 and 9 meter Systems | Less than ±0.038 mm (±1.5 mil) with components at 0 °C to +45 °C (+32 °F to +113 °F). |
Description:
One-meter systems do not use an extension cable. Proximitor sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.
Consult Bently Nevada Applications Note, Considerations when using Eddy Current Proximity Probes for Overspeed Protection Applications, when considering this transducer system for tachometer or overspeed measurements.
3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components. Although the packaging of the 3300 XL Proximitor Sensor differs from its predecessor, its design fits in the same 4-hole mounting pattern when used with the 4-hole mounting base, and will fit within the same mounting space specifications (when minimum permissible cable bend radius is observed).
Unless otherwise noted, the following specifications are for a 3300 XL 8 mm Proximitor Sensor, extension cable and 8 mm probe between +18 ˚C and +27 ˚C (+64 ˚F to +80 ˚F), with a -24 Vdc power supply, a 10 kΩ load, an AISI 4140 steel target, and a probe gapped at 1.27 mm (50 mils). Performance characteristics apply to systems that consist solely of 3300 XL 8 mm components. The system accuracy and interchangeability specifications do not apply to transducer systems that are calibrated to any target other than our AISI 4140 steel target.
Datasheet Link:
Bently Nevada 330180-50-00.pdf
