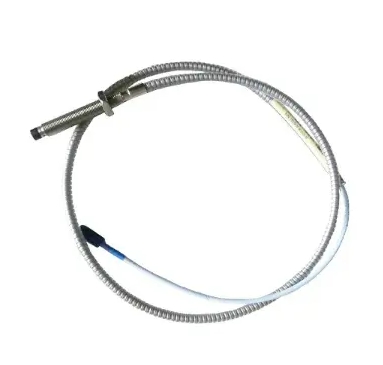

330104-08-16-05-02-05 Bently Nevada Proximity Probe Vibration Monitoring Sensor
Product Details:
| Brand Name | Bently Nevada |
| Model | 330104-08-16-05-02-05 |
| Catalog | 3300 XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Nominal Probe DC Resistance |
| Resistance (RPROBE) from Center Conductor to Outer Conductor |
| Probe Length (m) | RPROBE(Ω) |
| 0.5 | 7.45 ± 0.50 |
| 1.0 | 7.59 ± 0.50 |
| 1.5 | 7.73 ± 0.50 |
| 2.0 | 7.88 ± 0.50 |
| 3.0 | 8.17 ± 0.50 |
| 5.0 | 8.73 ± 0.50 |
| 9.0 | 9.87 ± 0.50 |
Description:
All 3300 XL extension cables include silicone tape as an alternative to connector protectors, though it’s unsuitable for turbine oil-exposed environments. When designing your system, evaluate temperature ranges and operating conditions to select the ideal probe-cable combination. Proper selection ensures optimal performance and longevity in your specific application.
When physical space is limited, the 3300-series 5mm probe delivers the same side clearance as 8mm probes in a smaller footprint. For even tighter spaces, the 3300 NSv Proximity Transducer System offers specialized narrow-profile performance. These compact options ensure flexibility without compromising functionality, ideal for confined or complex machinery layouts.
The 3300-series 8mm probes are engineered for harsh conditions, featuring thick PPS plastic encapsulation around the coil for superior durability. Their larger diameter provides a rugged casing, making them the top choice when physical resilience is critical. We highly recommend 8mm probes wherever installation space allows, ensuring long-term reliability in challenging industrial applications.
For extreme temperatures, the ETR probe (218°C/425°F) and ETR extension cable (260°C/500°F) maintain reliable operation while staying compatible with standard 3300 XL systems. Mixing components—like an ETR probe with a standard cable—is possible, but system accuracy will follow ETR specifications. This flexibility allows tailored configurations for demanding thermal conditions.
Datasheet Link:
Bently Nevada 330104-08-16-05-02-05.pdf
