330103-00-04-10-02-00 Bently Nevada 3300 XL 8MM Proximity Probes

330103-00-04-10-02-00 Bently Nevada 3300 XL 8MM Proximity Probes

Product Details:

Additional Information:

Description:

8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.

Each 3300 XL extension cable includes silicone tape that you can use instead of connector protectors. We do not recommend silicone tape for applications that will expose the probe-to-extension cable connection to turbine oil.

When gapped at the center of the linear range, the interaction between two separate transducer systems (cross-talk) will be less than 50 mV on shaft diameters of at least 50 mm (2 in) or greater. You should take care to maintain minimum separation of transducer tips, generally at least 40 mm (1.6 in) for axial position measurements or 38 mm (1.5 in) for radial vibration measurements to limit cross-talk to 50 mV or less. Radial vibration or position measurements on shaft diameters smaller than 76.2 mm (3 in) will generally change the scale factor.

3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components when minimum permissible cable bend radius is observed.

Datasheet Link:

Bently Nevada 330103-00-04-10-02-00.pdf

8MM Proximity Probes

Bently Nevada 3300 XL Proximity Probes

330103-00-04-10-02-00 Proximity Probes

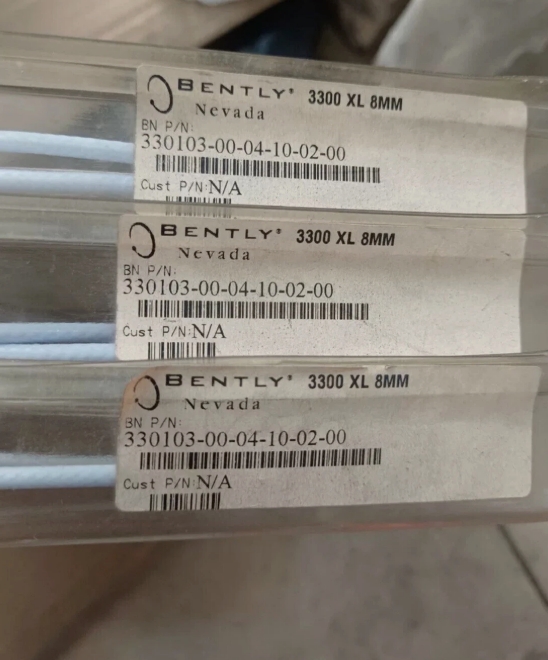

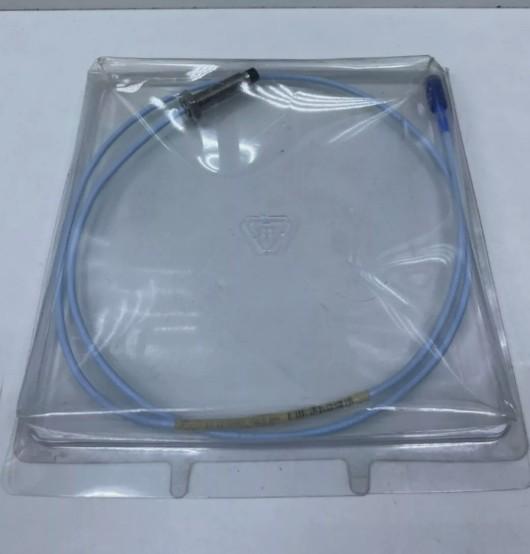

330103-00-04-10-02-00 Bently Nevada 3300 XL 8MM Proximity Probes Images
