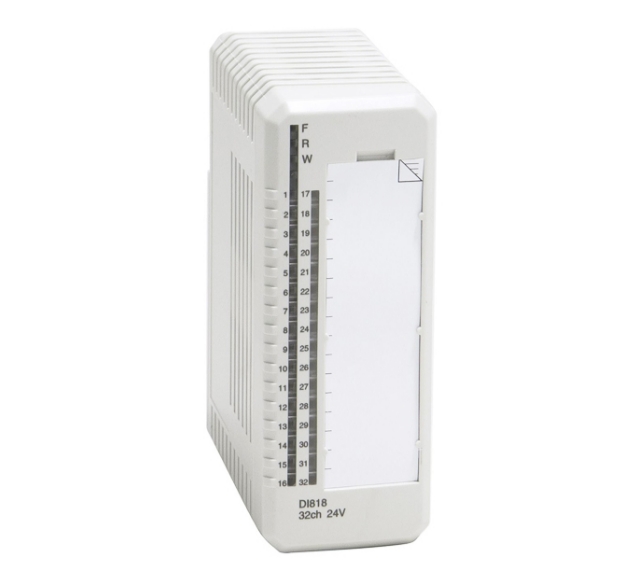

ABB DI818 3BSE069052R1 Digital Input Module 24V 32 Channels Unit In Stock
Product Details:
| Brand Name | ABB |
| Model | DI818 3BSE069052R1 |
| Product ID | 3BSE069052R1 |
| Condition | New |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin | Sweden (SE) |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depends on material |
| Warranty | 12 months |
| Lead time | 5-8 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Type | Digital Input |
| Signal specification | 24 V d.c. |
| Type Input voltage range, "0" | -30 .. +5 V |
| Input voltage range, "1" | 11 .. 30 V |
| Input impedance | 5.6 kΩ |
| Number of channels | 32 |
| Signal type | Current sinking |
Description:
This module has 32 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 4.3mA at 24 V. The inputs are divided into two individually isolated groups with 16 channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.
The ABB DI818 is a digital input module designed to work with ABB's S800 I/O system, specifically the ABB Competence System 800xA process automation platform. It is designed to collect digital signals from a variety of external devices and input this information into a programmable logic controller (PLC) or distributed control system (DCS). ABB DI818 3BSE069052R1 S800 I/O Module. ABB S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with the parent controller via industry-standard fieldbus technology and can therefore be used with a wide range of process controllers from ABB and other vendors.
ABB DI818 3BSE069052R1 32-channels 24 V d.c. Digital Input Module S800 I/O Systems.This module has 32 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 4.3mA at 24 V. The inputs are divided into two individually isolated groups with 16 channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The A8B DI818 is a Digital Input Module designed for industrial applications, equipped with 32digital inputs spread across two isolated groups.Each group supports 16 channels with a voltage supervision feature for enhanced monitoring and safety.
This module has 32 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 4.3mA at 24 V. The inputs are divided into two individually isolated groups with 16 channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.
Datasheet Link:
ABB DI818 3BSE069052R1.pdf
