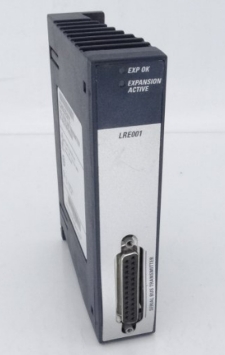

IC695LRE001 GE PACSystems RX3i Universal Backplane Series Bus Transmitter Module

  • 1
  • 2
  • 3

Brand Name : GE

Model Number : IC695LRE001

Certification : CO

Place of Origin : USA

MOQ : 1pc

Price : $200

Payment Terms : T/T

Supply Ability : 10pcs

Delivery Time : 5-8 work days

Packaging Details : 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)

Model : IC695LRE001

Condition : New

Gross Weight/Shipping Weight : 2.2 lbs / 35.2 oz / 1kg

Packing Size : 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)

Country of Origin/Original Country : United States (USA)

Lead Time : In Stock

Shipping Port : Xiamen

Payment : T/T

Sales Price : Inquiry

Color : Depends on material

Warranty : 12 months

Lead time : 5-8 work days

Courier partners : DHL, UPS, TNT, FedEx and EMS

Contact Now

IC695LRE001 GE PACSystems RX3i Universal Backplane Series Bus Transmitter Module

Product Details:

Brand Name GE
Model IC695LRE001
Catalog IC695
Origin United States (USA)
Dimension 16*16*12cm
Weight 1kg
HS Code 8537101190
Payment T/T
Sales Price $200
Warranty 12 months
Lead time 3-5 work days


Additional Information:

Catalog Number Date Description
IC695LRE001D October 2014 Backplane engagement and manufacturability improvements
IC695LRE001C October 2008 Hardware changes for EU-RoHS compliance
IC695LRE001B September 2007 ATEX approval for Group 2, Category 3 applications
IC695LRE001A August 2004 Initial product release


Description:

The RX3i Serial Bus Transmitter Module, IC695LRE001, provides communications between a PACSystems RX3i Universal Backplane (IC695-model number)

And serial expansion and remote backplanes (IC694- or IC693-model numbers). It translates the signal levels present in the Universal Backplane to the signal levels required by a Serial Expansion Backplane.

Current Required from Backplane 5.0V: 132mA
Maximum Total Expansion Cable Length

15 meters (50 feet) – Expansion Backplanes

213 meters (700 feet) – Remote Backplanes
Effective Data Rate

500k Bytes per second

if the expansion bus includes Remote backplanes
Electrical Isolation Non-isolated differential communications
Serial Port Station Manager Port: RS-232 DCE, 1200 - 115200 bps

IC695LRE001 GE PACSystems RX3i Universal Backplane Series Bus Transmitter Module

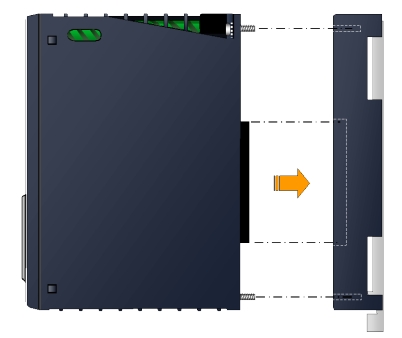

The Serial Bus Transmitter Module must reside in the special expansion connector on the right end of the Universal Backplane. This module may NOT be hot-inserted in the backplane; power must be removed before installing or removing the Expansion Module.

In addition, the expansion cable may not be attached or removed if the expansion rack has power applied.

IC695LRE001 GE PACSystems RX3i Universal Backplane Series Bus Transmitter Module

Datasheet Link:GE IC695LRE001.pdf
