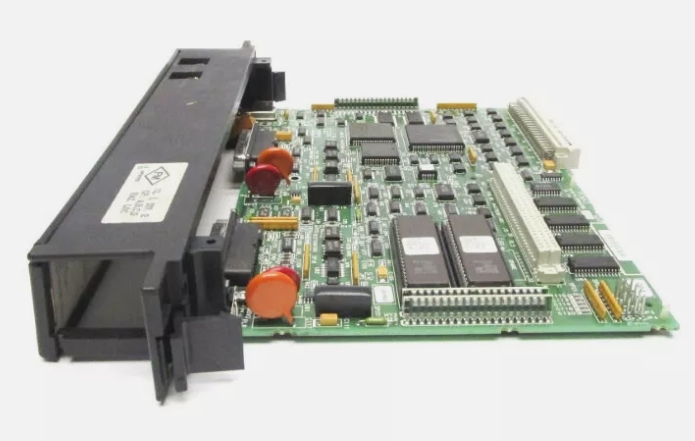

IC697PCM711 GE Coprocessor Modules Programmable Single Slot Coprocessor Dual Tasking
Product Details:
| Brand Name | GE |
| Model | IC697PCM711 |
| Catalog | IC697 |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $300 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Features |
| 12 Mhz, 80C186 microprocessor |
| 90% of an IBMAT performance |
| Up to 96 Kbytes battery-backed CMOS logic and data memory on board |
| Supports up to 512 Kbytes optional expansion memory |
| Programmed by IC647, IC640 or IBM-compatible Personal Computer |
| Soft Configuration (No dip switches or jumpers) with MS-DOS or Windows based programming software configuration function |
Description:
The Programmable Coprocessor Module (PCM) is a Coprocessor to the PLC CPU. It can be programmed to perform operator interface, real time computations, data storage, data acquisition and data communications functions.
It communicates with the PLC CPU over the backplane and can access user and system data using extensions to the powerful MegaBasic language. No application program support is required in the PLC CPU.
The PCM can operate with or without an expansion memory daughter board. The base memory on the PCM board has up to 95 Kbytes user memory. The expansion memory daughter board permits expansion of program/data memory by 64, 128, 256 or 512 Kbytes.
An IC647 or IC640 computer, or IBM-compatible PC, XT, or AT computer with PCM Development Software installed is connected to the top port of the PCM.
The default setting is 19,200 bps. The PCM Development Software is used to configure the serial port parameters, to define the interface to the PLC CPU, to select task functions and to program MegaBasic applications.
Datasheet Link:GE IC697PCM711.pdf
