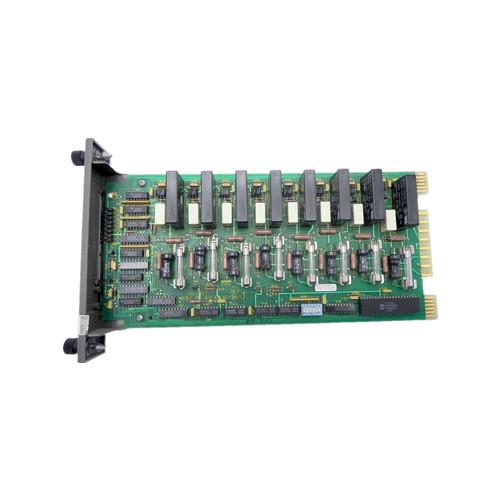

IMDSO01 ABB Bailey Infi 90 Digital Output Slave Module PLC Spare Parts

Joyoung International Trading Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IMDSO01 ABB Bailey Infi 90 Digital Output Slave Module PLC Spare Parts

  • 1
  • 2

Brand Name : ABB

Model Number : IMDSO01

Certification : COC

Place of Origin : Sweden

MOQ : 1 Piece

Price : inquiry

Payment Terms : T/T

Supply Ability : 10 Piece per a day

Delivery Time : 5-8 work days

Packaging Details : original

Name : ABB Power Module

Model : IMDSO01

Package : STANDARD

Warranty : 12 months

Gross Weight : 2.2 lbs / 35.2 oz / 1kg

Packing Size : 7" x 7" x 4" (18 cm x 18 cm x 10 cm)

Lead time : 1~3 Days

Quality : 100%Brand

Product name : Programmable Logic Controller

Stock : Available

Contact Now

IMDSO01 ABB Bailey Infi 90 Digital Output Slave Module PLC Spare Parts

Product Details:

Brand Name ABB
Model IMDSO01​
Product ID N/M
Condition New
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 7" x 7" x 4" (18 cm x 18 cm x 10 cm)
Country of Origin Estonia
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depends on material
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS

Additional Information:

Model IMDSO01
Power Supply
Voltages:
Current Consumption:
± 5 VDC Logic Supply ± 5%
± 24 VDC I/O Supply + 12%, -10%
5 VDC 1.4 Amps typical, 1.5 Amps maximum
24 VDC 62 mA typical, 70 mA maximum

Power requirements

Max. load voltage

Max. load current

Max. off leakage current

Max. on voltage drop
Max. surge current

+5.00, ± 0.25 VDC at 150 mA; 0.75 W nominal
24 VAC to 240 VAC
3.0 A at 25°C (77°F)
2.0 A at 50°C (122°F)
1.0 A at 70°C (158°F)
8.5 mA at 120 VAC, 25°C (77°F)
17.5 mA at 240 VAC, 25°C (77°F)
3.0 V at 3.0 A, 25°C (77°F) with 0.3-m (1-ft) long termination device cable
50 A for 1 cycle
Debounce Times

ON time 8.5 milliseconds (typical)

OFF time 8.5 milliseconds (typical)

Input Signal Frequency Limit Upper frequency limit for using debounce: 40Hz
Mode Accuracy

Totalize: ± 0 Counts

Frequency Count: ± 1 Count

Period Determination: ± 1 Count

Maximum Input Frequency 50 kHz (at 50% duty cycle)
Timebase Accuracy ±0.033%
Isolation Voltage

150 V RMS channel to channel

350 V RMS inputs to logic

Surge Withstand

Meets requirements of IEEE Surge Capability Standard 472-1974, on all debounced inputs

NOTE: If you select a preamplifier for a channel, the counter associated with that channel may increment during surge pulsing

Mounting Uses 1 slot in Infi 90 Module Mounting Unit.
Certification CSA certified as process control equipment in an ordinary (non-hazardous) location.

Description​:

The IMDSO01, IMDSO02 and IMDSO03 Digital Output Modules (DSO) output eight separate digital signals from the INFI 90® Process Management System to a process. Control modules use these outputs to control (switch) process field devices.

The IMDSO01, IMDSO02 and IMDSO03 Digital Output (DSO) Modules output eight isolated digital signals from the INFI 90 system to control a process. The signals provide digital switching (on or off) for process field devices. Control modules perform the control functions and I/O modules provide the input and output signals. The DSO modules all function and operate the same. The only difference is in the output switching capability and associated fusing.
